Web Cam Inc. / Honda CRF 450 X SOHC 4v

Honda CRF 450 X SOHC 4v

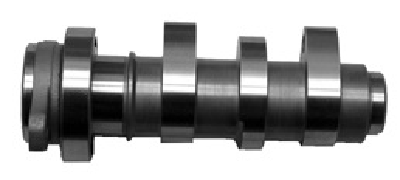

Product Photo:	Ordering Information: Prices And Specifications Effective June 2023, And Are Subject To Change Without Notice. When a core is required for an item, the core charge will automatically be added to your cart when you add the item. You must return your re-workable OEM core within 180 days of purchase in order to receive a core refund. If we do not offer a core for your application, you need to call us first, and send your core in to be reground / hardwelded. We use PayPal for payment processing so you know your transaction is safe and secure. You do NOT need a PayPal account to shop with us, you can use your credit card. You may also call us to order any of the listed items. All in stock orders placed on-line Monday - Friday before 3:00pm Pacific, will ship the same day. Please be sure to read our Ordering Policies. Pricing Information: Web Cam Inc. makes every effort to ensure the accuracy of the prices and specifications listed on our web site. However, prices and specifications are subject to change without notice. Prices listed do not reflect shipping and handling charges, nor sales tax (if applicable). WEB CAM INC. IS NOT RESPONSIBLE FOR ANY INACCURACIES.

Close Open Camshaft Profiles:

▼

$605.00

	Performance profile designed to increase overall performance. Excellent throttle response. Requires Exhaust System, High Compression Piston, and Performance Valve Spring Kit.			Qty:

▼

$605.00

	Performance profile designed to increase mid and upper end. Requires Exhaust System, High Compression Piston, and Performance Valve Spring Kit.			Qty:

▼

$605.00

	Race profile. Works well for TT, Super Motard or MX. Requires Exhaust System, High Compression Piston, Larger Diameter Followers, Shortened Valve Guides, and Performance Valve Spring Kit.			Qty:

▼

$605.00

	Performance profile designed to increase mid and upper end. Requires Exhaust System, High Compression Piston, Larger Diameter Followers, Shortened Valve Guides, and Performance Valve Spring Kit.			Qty:

▼

$605.00

	High lift, short duration racing profile. Excellent throttle response. Requires Exhaust System, High Compression Piston, Larger Diameter Followers, Shortened Valve Guides, and Performance Valve Spring Kit. Check ALL clearances!			Qty:

▼

$605.00

	Race profile. A WEB CAM winner! Requires Exhaust System, High Compression Piston, Larger Diameter Followers, Shortened Valve Guides, and Performance Valve Spring Kit. Check ALL clearances!			Qty:

▼

$605.00

	The "MYSTO" cam designed for race use ONLY. Works good for big bore applications. Requires Exhaust System, High Compression Piston, Larger Diameter Followers, Shortened Valve Guides, and Performance Valve Spring Kit. Check ALL clearances!			Qty:

Other Components:

Part Type

PART #

▼

Bolts

CB-001

$25.00

	New factory OEM Bolts to use with your adjustable cam gear. See part number CG-H14. Price Per Set (2).			Qty:

▼

Buckets, Shim Under (Supertech)

CF-C41

$45.00

	28 mm x 20 mm x 3.0 mm Price (Each).			Qty:

▼

Buckets, Shim Under (Supertech)

CF-C37

$45.00

	26 mm x 18 mm x 3.0 mm Price (Each).			Qty:

▼

Chain Tensioner, Manual

CT-H08

$75.00

	CNC machined from billet alloy to exact tolerances for perfect fit. This tensioner can not back out allowing the cam chain to jump the sprockets as the auto adjusters have been known to do. In the CRF models fits (04-14). Price (Each).			Qty:

▼

Chain Tensioner, Manual PRO Series

CT-H03

$120.00

	The PRO Series is designed for the racer who frequently adjust his engine. The easy-access socket head adjuster screw is perfect for tight spaces. The interior o-ring design ensures that repeated adjustments will not eventually flatten the o-ring against the jam nut. The PRO Series design features an internal o-ring and custom-machined adjuster bolt. The bolt is broached with a 4 mm hex. Does not fit CRF 450 R (02-03) models, or the TRX 450 ER 06, and the 10-14 models as well. Price (Each).			Qty:

▼

Valve Spring Kit With Titanium Retainers (High Rev),(RHC)

VC-H97

$285.00

	Kit includes performance single springs, hardened bottoms, and titanium retainers. Recommend for Flat Track use and Hi-Rev applications. OK to .394" Valve Lift. Price Per Set (4).			Qty:

▼

Valve Spring Kit With Titanium Retainers (PM)

VC-H74

$210.00

	Kit includes performance dual springs and Titanium retainers. OK up to 0.440" valve lift. Check ALL clearances! Price Per Set (4).			Qty:

▼

Valves, Stainless (Kibblewhite) Intake Standard Size

IV-H15

$32.00

	Standard size 36 mm CRF 450 R (02-08), +1 mm OS for the 450 X (05-17). Price (Each).			Qty:

▼

Valves, Stainless (Ferrea) Intake Oversized

IV-H36

$46.00

	Oversized +1 mm to 37 mm for Honda CRF 450 R (02-08), +2 mm OS for the 450 X (05-17). Price (Each).			Qty:

▼

Valves, Stainless (Kibblewhite) Intake Oversized

IV-H16

$32.00

	Oversized +1 mm to 37 mm, +2 mm OS for the 450 X (05-17). Price (Each).			Qty:

▼

Valves, Stainless (Kibblewhite) Intake Oversized

IV-H19

$77.00

	Oversized +2 mm to 38 mm, +3 mm OS for the 450 X (05-17). Price (Each).			Qty:

▼

Valves, Stainless (Ferrea) Intake

IV-H39

$46.00

	Standard size 36 mm Honda CRF 450 R (02-08), +1 mm OS for the 450 X (05-17). Price (Each).			Qty:

▼

Valves, Stainless (Ferrea) Exhaust STD / Oversize

EV-H39

$46.00

	Standard Size 31 mm for CRF 450 R (02-06), +1 mm oversize for CRF 450 R (07-08), CRF 450 X (05-17), TRX 450 ER (06-14), TRX 450 R (06-09). Price (Each).			Qty:

▼

Valves, Stainless (Kibblewhite) Exhaust STD / Oversize

EV-H15

$32.00

	Standard Size 31 mm for CRF 450 R (02-06), +1 mm oversize for CRF 450 (07-08), CRF 450 X (05-17), TRX 450 ER (06-14), TRX 450 R (06-09). Price (Each).			Qty:

▼

Valves, Stainless (Kibblewhite) Exhaust Standard Size

EV-H07

$32.00

	Standard size 30 mm. Price (Each).			Qty:

▼

Valves, Stainless (Ferrea) Exhaust Oversized

EV-H40

$46.00

	Oversized +1 mm to 32 mm for CRF 450 R (02-06), +2 mm oversize for CRF 450 (07-08), CRF 450 X (05-17), TRX 450 ER (06-14), TRX 450 R (06-09). Price (Each).			Qty:

▼

Valves, Stainless (Kibblewhite) Exhaust Oversized

EV-H16

$77.00

	Oversized +1 mm to 32 mm for CRF 450 R (02-06), +2 mm oversize for CRF 450 R (07-08), CRF 450 X (05-17), TRX 450 ER (06-14), TRX 450 R (06-09). Price (Each).			Qty:
